My stock block GSR dyno chart...
#12
This is going to spo
Thread Starter
Join Date: Nov 2002
Location: portsmouth
Posts: 1,572
Likes: 0
Received 0 Likes
on
0 Posts
#14
braap braap
Join Date: Jul 2003
Location: Portsmouth
Posts: 14,535
Likes: 0
Received 0 Likes
on
0 Posts
Re: My stock block GSR dyno chart...
to Millennium. Was it Crome that your tuned on?
Those are good numbers. Up that compression and really make some power.
My friend made 200whp and upper 130 torque on a stock port head, Skunk2 Pro1s, 12.X something compression, ProFab header on Milleniums dyno.
#15
Racetracks
Join Date: Nov 2002
Location: How long is a piece of string?
Posts: 15,668
Likes: 0
Received 0 Likes
on
0 Posts
Re: My stock block GSR dyno chart...
Anyway, spikes like that can be tuned out pretty easily by tweaking the vtec and non-vtec fuel maps right around the crossover point. Nothing special, but takes a bit more dyno time than a standard tune. There are some fuel transport delay issues also, but the time constant should be about the same as the time it takes the slow solenoid to lock the rockers so I'm not sure. I have seen that jumpiness a lot though.
#16
This is going to spo
Thread Starter
Join Date: Nov 2002
Location: portsmouth
Posts: 1,572
Likes: 0
Received 0 Likes
on
0 Posts
Re: My stock block GSR dyno chart...
It took about 2 billable hours of tuning, 30 minutes of which was partial throttle/tip in tuning.
more compression might push it over 200, but I'm not going to pull the engine for 7hp. if the engine comes out I'm doing compression, displacement and headwork at the same time..and I sorta think the pro1s are a little better cam then the stage 2s
more compression might push it over 200, but I'm not going to pull the engine for 7hp. if the engine comes out I'm doing compression, displacement and headwork at the same time..and I sorta think the pro1s are a little better cam then the stage 2s
#17
braap braap
Join Date: Jul 2003
Location: Portsmouth
Posts: 14,535
Likes: 0
Received 0 Likes
on
0 Posts
Re: My stock block GSR dyno chart...
It took about 2 billable hours of tuning, 30 minutes of which was partial throttle/tip in tuning.
more compression might push it over 200, but I'm not going to pull the engine for 7hp. if the engine comes out I'm doing compression, displacement and headwork at the same time..and I sorta think the pro1s are a little better cam then the stage 2s
more compression might push it over 200, but I'm not going to pull the engine for 7hp. if the engine comes out I'm doing compression, displacement and headwork at the same time..and I sorta think the pro1s are a little better cam then the stage 2s
Civicboy88 has a Civic Si with a 98+ Spec JDM ITR motor with Skunk2 Stage 2s and it made 190 to the wheels tuned on S100.
Your a hatch, so your car probably bails.
#18
Re: My stock block GSR dyno chart...

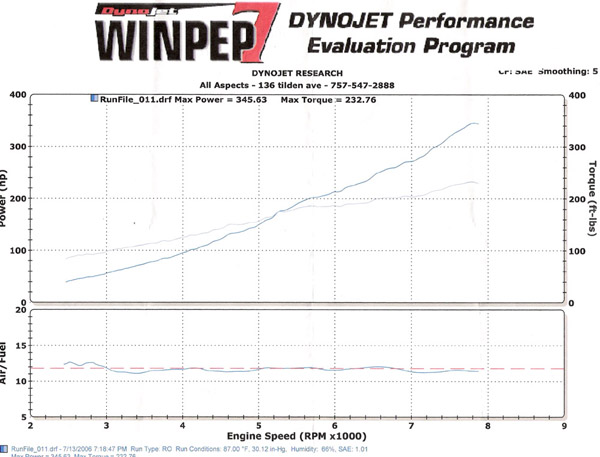

Attached is a dyno chart of my boys turbo B16 that Ross tuned. It was just a QUICK tune. My friend didn't pay him but an hour. Another hour and things could have been damn near perfect. He did it in like 4 or 5 pulls. Different cams were going in the week after so he just did a quick tune and got the AFR's and VTEC smoothing pretty decent for the little time it took him. I guess it would make a difference with NA motors being more affected by small timing or fuel changes.
#19
This is going to spo
Thread Starter
Join Date: Nov 2002
Location: portsmouth
Posts: 1,572
Likes: 0
Received 0 Likes
on
0 Posts
Re: My stock block GSR dyno chart...
Attached is a dyno chart of my boys turbo B16 that Ross tuned. It was just a QUICK tune. My friend didn't pay him but an hour. Another hour and things could have been damn near perfect. He did it in like 4 or 5 pulls. Different cams were going in the week after so he just did a quick tune and got the AFR's and VTEC smoothing pretty decent for the little time it took him. I guess it would make a difference with NA motors being more affected by small timing or fuel changes.
I went throught the all motor dyno thread and 9 out of 10 of the afr charts had the same spike....
And god knows that if I "just took my car to ross" I would have made 250...
#20
Kimchee Wiggler
Join Date: Nov 2002
Location: Morrisville NC
Posts: 1,283
Likes: 0
Received 0 Likes
on
0 Posts
Re: My stock block GSR dyno chart...
It took about 2 billable hours of tuning, 30 minutes of which was partial throttle/tip in tuning.
more compression might push it over 200, but I'm not going to pull the engine for 7hp. if the engine comes out I'm doing compression, displacement and headwork at the same time..and I sorta think the pro1s are a little better cam then the stage 2s
more compression might push it over 200, but I'm not going to pull the engine for 7hp. if the engine comes out I'm doing compression, displacement and headwork at the same time..and I sorta think the pro1s are a little better cam then the stage 2s
